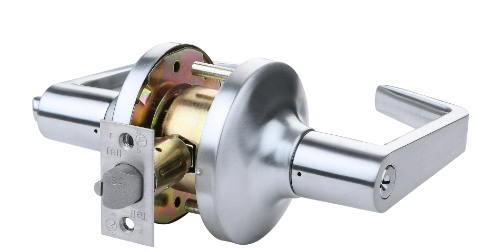

LC2400 Series Cortland Grade 2 Lock Heavy Duty - Storeroom Handle

Performance- Complies with ANSI A156.2, Series 4000, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code, UL/ULC listed for 3 hour fire door

Chassis- Cylindrical, steel-coated w/ zinc dichromate (corrosion resistance)

Lever- Non-handed, • Solid cast

Latch- 2 3 /4" Backset, 1-1/8" x 2-1/4" square corner faceplate, 1" housing, 1/2" throw (stainless steel)

Rose- 3-1/2" diameter

Thru-bolts- Non-removable thru-bolts standard

Backset- 2 3 /4"

Cylinder- • C keyway (SCC) • 6-pin solid brass • Keyed different (KD)

Keys-Two nickel silver per lock cylinder
